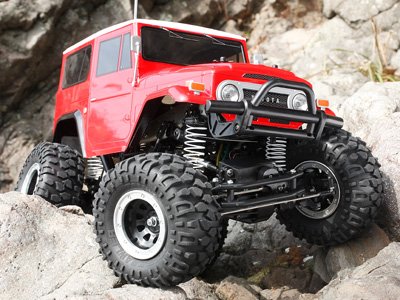

Unleashing the Beast: Tamiya's Land Cruiser 40 CR-01
For those passionate about conquering rugged terrains, Tamiya's CR-01 chassis featuring the renowned Toyota Land Cruiser 40 body is a game-changer. As an RC enthusiast, you'll appreciate how this model bridges the gap between performance and realism, offering the perfect platform for rock crawling adventures. With its lightweight polycarbonate shell, it mirrors the classic Land Cruiser lines while ready to tackle the toughest courses.
Engineering Marvel: The CR-01 Chassis
The heart of this crawler is its dedicated CR-01 chassis, a marvel of engineering designed specifically for rock crawling aficionados. It boasts a heavy-duty ladder frame constructed from robust yet lightweight pressed aluminum channels, complemented by resin cross members. This design ensures durability without sacrificing agility, crucial for navigating rocky landscapes.
Mastering Terrain with Precision
At the core of its terrain-taming prowess is the planetary gearbox, equipped with a 20T pinion gear yielding a 40.5:1 gear ratio. For those inclined to fine-tune their setup, pinion gears ranging from 16T to 25T offer gear ratios from 50.6:1 to 32.4:1. The included 540 motor provides power, but you'll need to supply your own ESC, 2-channel R/C system, and a 7.2V battery, allowing for personalized configurations.
Suspension System: Flexibility and Stability
The CR-01's 4-link coil spring suspension is designed for maximum flexibility, crucial for overcoming challenging rocky terrains. The inboard dampers are ingeniously connected via linkages to a stabilizer torsion bar, ensuring that the vehicle maintains balance across uneven surfaces. This setup offers a responsive and sure-footed driving experience, ideal for competitive crawlers and hobbyists alike.
Wheels and Tires: Ground Clearance Galore
Tamiya's newly designed 3-piece beadlock wheels come equipped with massive 125mm diameter and 56mm width rock crawler tires. These components work harmoniously with the suspension system, delivering impressive ground clearance and traction, essential for tackling the most demanding trails.
Specifications
- Scale: 1/10
- Chassis Type: CR-01
- Motor: 540 Type
- Suspension: 4-link coil spring with stabilizer torsion bar
- Gear Ratio: 40.5:1 (adjustable from 50.6:1 to 32.4:1)
- Tires: 125mm diameter, 56mm width
- Requires: ESC, 2ch Radio w/1 servo, Paint, and Assembly
The Tamiya Land Cruiser 40 CR-01 is a top-tier choice for rock crawling enthusiasts who value realism, customization, and performance. Its robust features and flexible setup make it suitable for both seasoned hobbyists and newcomers eager to explore off-road capabilities.
