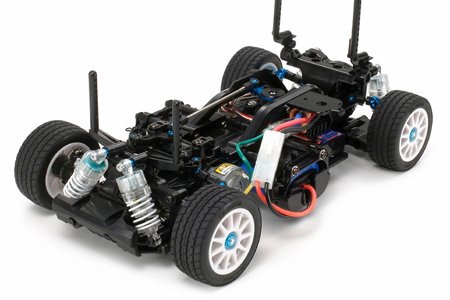

Tamiya 58443 - 1/10 RC M05 PRO Chassis Kit - M05  [58443]

• Tamiya is proud to introduce the release of a new framework on remarkably popular M Chassis range, the M-05 PRO chassis kit. The latest framework layout features new servo, receiver,and ESC roles for improved fat distribution and a lesser center of gravity. Further-more, a 3-piece tie-rod steering linkage provides sharp cornering performance. This device handles well on straights and demonstrates its worth along with its exemplary high-speed cornering capability. Body shells and numerous choice components for M-03 framework devices canbe loaded onto this device effortlessly.

• Battery power, motor, and R/C device sit lower versus tire height for maximum fat circulation and a decreased center of gravity. Three wheelbase lengths are possible (210mm/225mm/239mm) simply by switching the positioning of components from rear suspension system. The chassis is compatible with M-03 chassis figures, offering you a wide range of human anatomy option. The 60D radial tires with realistic tread pattern are mounted on the 11-spoke white wheels.
• M-03R Aluminum Back Uprights
• Aluminum Horn for Hi-Torque Servo Saver
• CVA Oil Damper Super Mini
• Short Springs for TRF Dampers (Soft/Medium/Hard)
• 1150 Ball Bearings
• 850 Ball Bearings
• Aluminum Ball Connectors (Blue)
• Aluminum Ball Connector Nuts (Blue)
• 2.0mm Setting Spacer (Blue)
• 3.0mm Setting Spacer (Blue)
• 4mm Aluminum Flange Locknuts (Blue)
• Hi-Torque Servo Saver

Specs and qualities:

• Chassis Length: 299mm (when with 239mm wheelbase)
• Chassis Width: 165mm
• 3 Adjustable Wheelbase Lengths (210mm/225mm/239mm)
• Tread (front side and backside): 138mm
• Front Wheel Drive
• 3-bevel Differential Gear
• 3-piece steering linkage
• Front and Back Double Wishbone Suspension
• Front and Back CVA Oil Damper Super Mini
• Gear Ratio=5.8 :1
• Tire Width/Diameter (Front and back): 25/59mm

ELECTRICAL KITS NEED:
(unless reported in a different way above):

• Radio: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or peak for 6-cell battery
• Paint: PS for Polycarbonate/TS for ABS
• Misc. Products: Building and track equipment.
• Speed Controller: electronic speed controller
