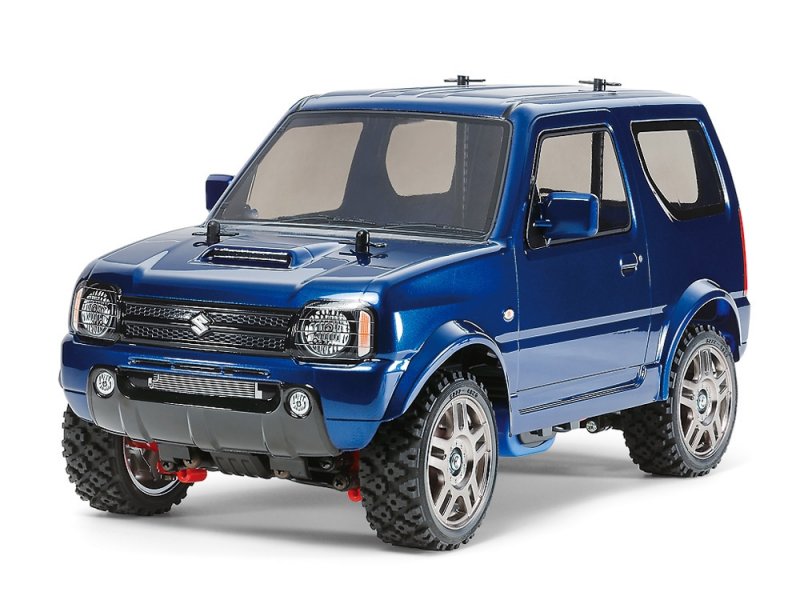

Tamiya 58614-60A - 1/10 Suzuki Jimny (JB23) (MF-01X) w/o ESC  [58614-60A]

Tamiya 58614-60A - 1/10 Suzuki Jimny (JB23) (MF-01X) w/o ESC
Price:
USD$87.70
Brand:
Tamiya
Model:
58614-60A
GTIN:
4950344065608
Condition:
Brand New
( Available in warehouse )
Write a review
alt="Tamiya 58614-60A - 1/10 Suzuki Jimny (JB23) (MF-01X) w/o ESC" title="Tamiya 58614-60A - 1/10 Suzuki Jimny (JB23) (MF-01X) w/o ESC"
alt="Tamiya 58614-60A - 1/10 Suzuki Jimny (JB23) (MF-01X) w/o ESC" title="Tamiya 58614-60A - 1/10 Suzuki Jimny (JB23) (MF-01X) w/o ESC"
alt="Tamiya 58614-60A - 1/10 Suzuki Jimny (JB23) (MF-01X) w/o ESC" title="Tamiya 58614-60A - 1/10 Suzuki Jimny (JB23) (MF-01X) w/o ESC"
alt="Tamiya 58614-60A - 1/10 Suzuki Jimny (JB23) (MF-01X) w/o ESC" title="Tamiya 58614-60A - 1/10 Suzuki Jimny (JB23) (MF-01X) w/o ESC"
The Suzuki Jimny JB23 MF-01X w/o ESC produced by Tamiya in 1/10 scale M-Chassis Car series AWD drivetrain assembly kit, is classified in R/C Models - Off-Road - M-Chassis Cars

Tamiya 58614-60A - 1/10 Suzuki Jimny (JB23) (MF-01X) w/o ESC

The MF-01X is a tight chassis set to revolutionize the M-Chassis genre, and the all-important first model with this platform recreates the popular Japanese off-roader, the Suzuki Jimny. The Jimny, definitely, happens to be on sale together variant or any other since 1970, gaining many fans thanks to its versatility and toughness. The JB23 depicted by this model is among the 3rd generation Jimnys introduced in 1998 which had a modernized, curved human anatomy design. It showcased a feisty little gas injected, turbocharged 658cc motor and was a popular vehicle in the domestic Japanese market.

Key Design Points: energy is transmitted from the back mounted motor to your front wheels via a propeller shaft that runs down along side it associated with MF- 01X. Gearboxes are built-into the monocoque for a sturdy and easy-to-assemble structure.

The MF-01X has a three-section make-up; changing the central spacer part enables brief (210mm), middle (225mm), and very long (239mm) wheelbases. Item 58614 makes use of a middle wheelbase; choice components Item 54654 is needed to alter to a short wheelbase, and Item 54655 when changing to an extended wheelbase.


Specifications:


  • Scale: 1/10
  • Construction type: Assembly kit
  • Terrain use: Multi-Purpose
  • Drive-train: 4WD
  • Drive kind: Gearbox
  • Drive line: puppy bone
  • Differential type: Gear
  • Suspension: completely independent double wishbone
  • Steering process: Bell-crank
  • Shock damper: Friction damper
  • Shock damper product: Plastic
  • Tire type: Rubber
  • Tire tread: Rally block
  • Body product: Polycarbonate
  • Chassis material: Plastic
  • Electronic Speed Control (ESC): NOT INCLUDED
  • LED Light buckets: No
  • LED lights: No
  • Motor: 540-brushed type
  • Bearings: vinyl bushing
  • Adjustable camber: Fixed
  • Adjustable toe perspectives: Front only
  • Adjustable ground approval: Yes
  • Adjustable gear ratio: Yes
  • Adjustable wheelbase: Yes
  • Adjustable track width: Fixed
  • Adjustable shock angle: Fixed
  • Special function 1: split components recreate door mirrors.
  • Special feature 2: 3-section frame
  • Special feature 3: Rally Block tires are included. Width/Diameter: 27/69mm
  • Special feature 4: Features a lightweight, sturdy monocoque consists of left/right halves which integrate the gearboxes.
  • Special feature 5: Torque-tuned motor is roofed.
  • Special function 6: the automobile model features the M wheelbase: 225mm. Change to S (210mm) or L (239mm) wheelbase by switching the spacer found in the center
  • section, and fitting Things 54654-54655 MF-01X Propeller Shafts.
  • Special feature 7: Compatible with existing M-chassis systems, plus Item 54643 MF-01X Ball Bearing Set.
  • Requires A: 2-channel radio gear
  • Requires B: 7.2 battery ,charger and ESC
  • Requires C: Polycarbonate paint
