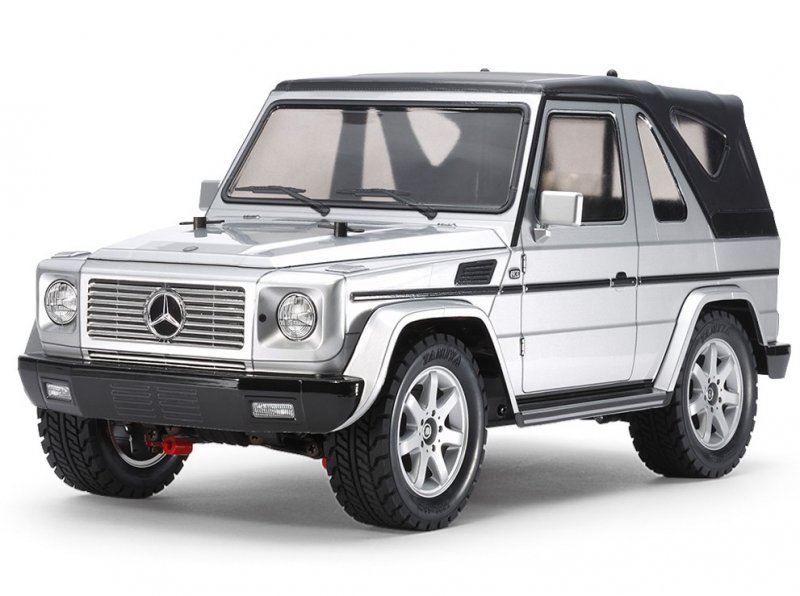

Tamiya 58629-60A - 1/10 Mercedes-Benz G 320 Cabrio (MF-01X) (w/o ESC)  [58629-60A]

Tamiya 58629-60A - 1/10 Mercedes-Benz G 320 Cabrio (MF-01X) (w/o ESC)
Brand New
Write a review

The Mercedes-Benz G-Class outstanding durability and off-road performance have made it a firm favorite with consumers since its inception in 1979, its polished technology taken over and modernized with each generation to make it a top class SUV. The G 320 was a 2-door cabriolet produced between 1997 and 2001, and was a much sought-after vehicle thanks to its stylish looks and typically uncompromising G-Class performance. And now Tamiya radio control replica is featured on the 4WD MF-01X chassis.

Based round a tough monocoque fame with integrate gearboxes, this compact 4WD chassis gives a thrilling drive whether you take it on-road or off-road. Features a rear-mounted motor, with gear-driven rear wheels and a propeller shaft taking power to the front. Both front and rear gearboxes have differential gears. Battery pack location in the center secures excellent balance. The 4-wheel independent double wishbone suspension employs friction dampers. Semi-pneumatic rubber tries feature realistic tread pattern. Utilizes a 3-piece main frame. Using included central spacer blocks and separately-sold propeller shafts, the chassis can be assembled into short(210mm), middle (225mm), and long (239mm) wheelbases using kit parts and separately-sold propeller shafts. Off-road capable M-05Ra uprights and hub carriers are included. Use with separately sold Item 54614 M-05 Ver.II Carbon Reinforced L parts to allow rebound stroke adjustment.


  • Scale: 1/10
  • Construction type: Assembly kit
  • Terrain use: On-Road
  • Drive-train: 4WD
  • Drive type: Gearbox
  • Drive line: Dog bone
  • Differential type: Gear
  • Suspension: Fully independent double wishbone
  • Steering mechanism: Direct servo
  • Shock damper: Friction damper
  • Shock damper material: Plastic
  • Tire type: Rubber
  • Tire tread: Radial
  • Body material: Polycarbonate
  • Chassis material: Plastic
  • Electronic Speed Control (ESC): NOT INCLUDED
  • LED Light buckets: No
  • LED lights: No
  • Motor: 540-brushed type
  • Bearings: Plastic bushing
  • Adjustable camber: Fixed
  • Adjustable toe angles: Front only
  • Adjustable ground clearance: Yes
  • Adjustable gear ratio: Yes
  • Adjustable wheelbase: Yes
  • Adjustable track width: Fixed
  • Adjustable shock angle: Fixed
  • Special feature 1: Length: 385mm, width: 178mm, height: 175mm
  • Special feature 2: The G 320 Cabrio body is expertly captured in lightweight, durable polycarbonate
  • Special feature 3: Side mirrors are recreated using separately molded plastic parts
  • Special feature 4: The 4WD MF-01X chassis has a rear mounted motor, and uses a prop shaft to transmit power to the front wheels. It features a robust, easy to maintain monocoque frame. It is at home on road and flat dirt surfaces
  • Special feature 5: This model uses the L wheelbase (239mm). The chassis can be set up in S (210mm) and M (225mm) wheelbases using separately-sold propeller shafts
  • Special feature 6: A range of option parts are available to hop up the MF-01X chassis, including lightweight, rigid aluminum propeller shafts
  • Requires A: 2-channel radio gear
  • Requires B: Electronic speed control
  • Requires C: TS plastic model paint
  • Requires D: 7.2 battery & charger
