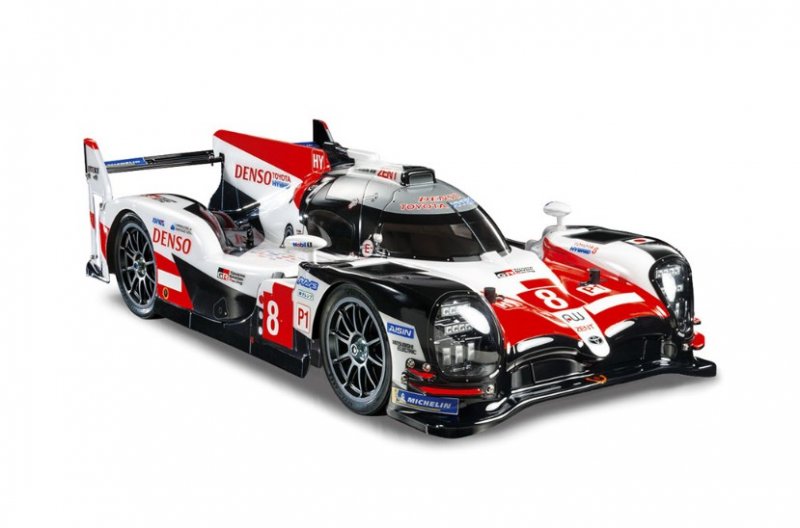

Tamiya 58665 - 1/10 Toyota Gazoo Racing TS050 Hybrid (F103GT Chassis)  [58665]

Tamiya 58665 - 1/10 Toyota Gazoo Racing TS050 Hybrid (F103GT Chassis)



Brand New
alt="Tamiya 58665 - 1/10 Toyota Gazoo Racing TS050 Hybrid (F103GT Chassis)" title="Tamiya 58665 - 1/10 Toyota Gazoo Racing TS050 Hybrid (F103GT Chassis)"
Write a review
The Toyota Gazoo Racing TS050 Hybrid F103GT produced by Tamiya in 1/10 scale Formula Car series RWD drivetrain assembly kit, is classified in R/C Models - On-Road - Formula Cars

F103GT - Fun, Responsive Direct Drive!

The F103GT chassis utilizes 2WD direct drive, with a rear-mounted motor. Its FRP double-deck frame employs 1.5mm upper and 2.5mm lower decks, cushioned by link-type arm and coil spring left/right independent front suspension. An FRP T-bar is the centerpiece of the rigid rear suspension setup, working in tandem with the friction plate and coil spring unit to provide a smooth drive. The height adjustable gear case allows a range of ground clearance settings, and contains a high-performance ball differential. Front uprights give a 3° caster angle, and are equipped with 850 ball bearings. Get ready for a fun, responsive drive! SpecificationsLength: 418mm, Width: 188mm, Height: 115mm
  • Wheelbase: 257mm
  • Tread: 156mm (Front & Rear)
  • Tire Width/Diameter: 26/66mm (Front & Rear)
  • FRP Double-Deck Frame
  • Direct Drive 2WD
  • Ball Differential
  • 2-Piece Steering Tie-Rod
  • Suspension: Kingpin Coil Sprung Independent L/R (Front), Rigid Type with FRP T-Bar and Friction Damper (Rear)
  • Gear Ratio = 5.00:1
  • Type 540 Motor
  • Electronic Speed Controller (ESC) is sold separately. Separately Required Items2-Channel R/C System w/ESC
  • R6/AA/UM3 batteries for transmitter
  • Battery Pack & Charger
