Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis  [58697]

Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis

Price:

USD$200.30

Brand:
Tamiya
Model:
58697
GTIN:
4950344586974
Condition:
Brand New
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
alt="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis" title="Tamiya 58697 - 1/10 Astute 2022 TD2 Chassis"
Write a review

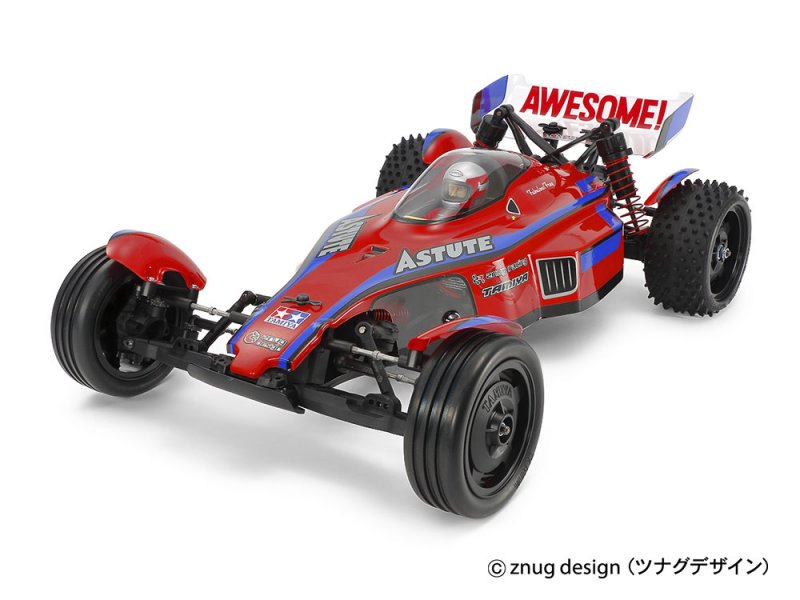

The Astute 2022 produced by Tamiya in 1/10 scale with TD2 chassis RWD drivetrain assembly kit, is classified in R/C Models - Off-Road - Buggy - Electric Powered
Tamiya brings yet another off-road buggy to its vast library of high-performance and fun to build R/C kits. This is the Astute 2022, which is based on the new TD2 chassis.

TD2 chassis at a glance:
The new TD2 chassis is based around the TD4 chassis. Just like the TD4 machine, it employs a front inboard suspension layout which offers exceptionally slim, low-profile form. Its front suspension arms have a skid angle of 25 degrees, for amazing ground-hugging and stable performance, plus CVA oil dampers to allow smooth suspension movement. Furthermore, the chassis is based on a one-piece monocoque frame, uses the same ball differential as the ones used on the TD4 chassis, plus full ball bearings are used throughout the driveline. The battery pack is positioned transversely and positioned to the rear. Finally, a midship transverse motor layout with 3 gears connecting it to the drivetrain provide optimum balance and improved performance.

• 1/10 R/C assembly kit. Length: 387mm, width: 246mm. Wheelbase: 283mm.
• Polycarbonate body.
• Ribbed front and rear square spike tires facilitate stability and great grip. Newly designed star dish design front wheels are attached by hex hubs.
• 4-wheel double wishbone suspension system uses CVA oil dampers for supple performance.
• Choose between high and low type wing stays to adjust the downforce set up of the buggy.
• Driver figure included for extra realism.
• Requires: 2-channel radio, steering servo, ESC, 540-size motor, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint to complete.

Specification:
  • Adjustable Gear Ratio : Yes
  • Bearings : Includes full ball bearings
  • Body Material : Polycarbonate
  • Body Stickers : Included
  • Chassis Material : FRP Fiberglass Reinforced Plastic
  • Chassis Type : TD-2
  • Construction Type : Assembly Kit
  • Differential Type : Ball Pressure Plate
  • Drive Type : 2WD
  • Electronic Speed Control (esc) : Sold Separately
  • Motor : Sold Separately
  • Required To Complete : 2-channel radio, low-profile steering servo, ESC, 540-size motor, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
  • Scale : 1/10
  • Shock Damper : CVA Oil Filled
  • Suspension : Fully Independent Double Wishbone
  • Terrain Use : Off-Road
