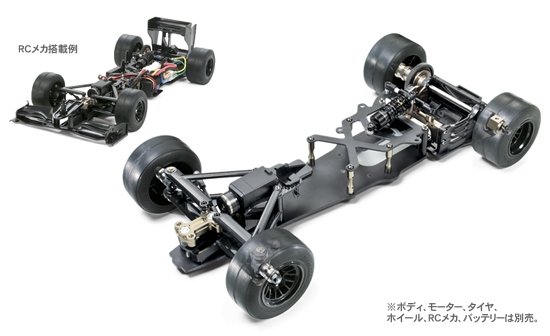

Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1  [84203]

Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1

Price:

USD$244.11

Brand:
Tamiya
Model:
84203
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Formula Cars category
alt="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1" title="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1"
alt="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1" title="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1"
alt="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1" title="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1"
alt="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1" title="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1"
alt="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1" title="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1"
alt="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1" title="Tamiya 84203 - 1/10 RC F104X1 Chassis Kit - F104X1"
Write a review
The F104X1 Kit F104X1 produced by Tamiya in 1/10 scale Formula Car series RWD drivetrain assembly kit, is classified in R/C Models - On-Road - Formula Cars
This new kit is based on the F104 chassis. It&39;s designated the F104X1 chassis and it&39;s a limited edition release. It was created to further improve traction and cornering performance. It features newly designed parts that include a roll damper as seen in many 1/10 and 1/12 scale pan cars and a new X-shaped upper deck. This limited edition kit also sports special-colored aluminum parts.



NEW Specs and Features:

  • X-Shaped FRP upper deck (new part)
  • Aluminum damper mount (Titanium color) (new part)
  • Rear axle shaft counter weight fitted with ball bearings (black color)
  • F104 carbon reinforced gear case (new part)
  • Aluminum Roll damper (Black color) (new part)
  • Item 54129 TB-03D Aluminum Motor Mount (new color)
  • Item 54158 F104 Aluminum Diff Housing Set (new color)
  • Item 54159 Aluminum Horn for Hi-Torque Servo Saver (F104) (new color)
  • Item 54202 F104 Aluminum Upper Suspension Mount (new color)
  • Left Rear Wheel Hub (new color)

Specs and Features:

  • Link-type front suspension
  • Front kingpin coil spring independent suspension
  • Direct drive solid rear axle transmission
  • Ball differential
  • Accommodates Tamiya foam or rubber tires
  • Fits F104 specific F1 body shells (sold separately)
  • Adjustable front camber
  • Adjustable front and rear ride height

Other Included Option Parts:

  • Item 53599 Fluorine Coated 5mm Aluminum Ball Nut
  • Item 53901 TRF Special Damper (F103GT) (Black)
  • Item 54154 F103 Carbon Reinforced Front Upright
  • Item 54160 F104 Titanium Coated King Pin
  • Item 54161 F104 Low Friction Suspension Ball Set
  • Item 54222 F104 High-Traction T-Bar
  • Touring Car Short Spring (Black)
  • Low Friction 5mm Adjuster
  • 3x35mm Aluminum Turnbuckle Shafts (Black)
  • 4mm Aluminum Lock Nuts (Black)
  • 4mm Aluminum Flanged Lock Nuts (Black)

New specification highlights and details:

  • Roll Damper & Upper Deck Pitch movement is controlled by a single TRF Damper and roll movement is controlled independently by a new Roll Damper. The Roll Damper connects to the FRP Upper Deck, which features a new X-shape for better roll characteristics, resulting in improved traction.
  • Counterweight The rear shaft counterweight is installed between the gear case and the left rear wheel to optimize balance and improve rear wheel traction. This freewheel counterweight is equipped with a ball bearing and does not affect the cars acceleration.
  • New durable gear case Compared to the standard fiberglass-reinforced parts, this Carbon Reinforced Gear case features superior strength and enhances the effect of the Roll Damper.
