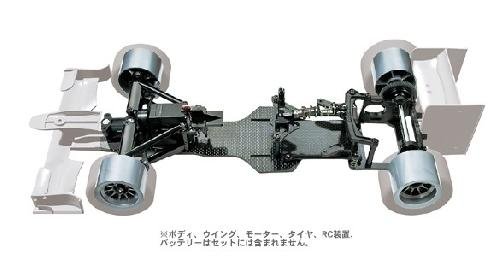

Tamiya 84336 - 1/10 RC F104 Ver.II v.2 Pro Chassis Kit Black Special  [84336]

Towards F104 version II:

The new F104 variation II framework includes a Pivot Ball Link back Suspension (PBLR) such as the one on the RM-01 framework. Compared to the past 3-point T-bar rear suspension system system, this new setup enables more exact alterations for the chassis' pitch and roll characteristics. Additionally, the PBLR suspension system system features a center pivot ball, an aluminum pitch damper to temper chassis pitch motion, and an aluminum roll damper and part links to regulate chassis roll. This new layout also increases overall traction and greater extreme speed cornering ability. The proven F104 front side suspension system stay intact, which features master pin coil springs for the suspension setup.

Specs & Features

• Scale: 1/10 scale
• Construction kind: construction kit
• Terrain use: on-road
• Drive-train: 2WD RWD
• Drive type: pinion to spur gear
• Drive line: solid axle
• Differential kind: ball force dish
• Suspension: independent front/solid axle backside
• Steering device: direct servo
• Shock damper: oil-filled damper
• Shock damper material: aluminum
• Tire kind: maybe not included
• Tire tread: slick
• Body product: Polycarbonate
• Chassis product: carbon fiber dish
• Electronic Speed Control (ESC): perhaps not included
• ESC model: n/a
• LED Light buckets: no
• Light-emitting Diode lights: no
• Motor: not included
• Bearings: shielded ball bearing
• Adjustable camber: yes
• Adjustable toe perspectives: front side just
• Adjustable ground approval: yes
• Adjustable gear ratio: yes
• Adjustable wheelbase: fixed
• Adjustable track width: fixed
• Adjustable shock angle: yes
• Unique feature 1: Pivot-Ball Link back (PBLR) suspension system
• Unique function 2: Aluminum parts anodized in black
• Unique function 3: Carbon lower deck 3.0mm thick
• Requires: 2-channel radio gear
• Requires: 7.2 battery pack & charger
• Requires: tires, tires, human body set, engine, esc
• Requires: motor
