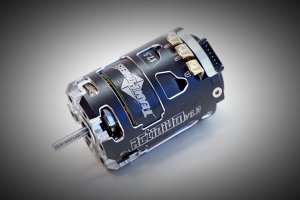

The Actinium V5 4.5 T-10.5T, 13.5T, 17.5T, 21.5T,25.5T Turn Brushless Sensored Motor produced by Team Powers, is classified in R/C Models - Motor / ESC / Cooling Fan - Motor - Car Motors
Specs:
•Based on IFMAR/ROAR/EFRA/BRCA design requirements.
•Modified winds, 13.5T, 17.5T, 21.5T engines are typical ROAR approved ( BRCA pending).
•Motor proportions (Diameter x size) 35.8mm x 52.2mm.
•Shaft Diameter: 3.17mm
•Magnet Dimensions
12.3 x 5x 24.2mm(3.5T~9.5T),
12.5 x7.2x25.2mm (10.5T~21.5T),
12.3 x7.2x25.2mm (25.5T)
Variable timing end bell
•Weight: ~150g (varies between turns)
•Recommended RC Model automobile: 1:10 touring, Buggy, MINI vehicle.
Available Turns: 4.5T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, 10.5T, 13.5T, 17.5T, 21.5T,25.5T - 3.5T order by request.
Improvements in line with the Actinium V4 motor:
•Revised assembly design for enhanced sensor precision.
•Revised stator dish profile with 3 screws holes sealed to improve magnetic field persistence and efficiency.
•Traditional three long construction screws replaced with short screws mounted to part associated with the end bell.
•Copper wiring purity increased for minimized resistance. Hand injury for maximum precision and effectiveness.
•Revised rotor magnetic product for improved strength, effectiveness and expand the fade out time.
•Motor can machining pages somewhat revised from V4 to enhance convection cooling.
•Collector ring machined from proprietary alloy leading to minimal opposition and maximum heat dissipation.
