The Radon Pro V4 1S 200A Speed Control included USB device produced by Team Powers, is classified in R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC

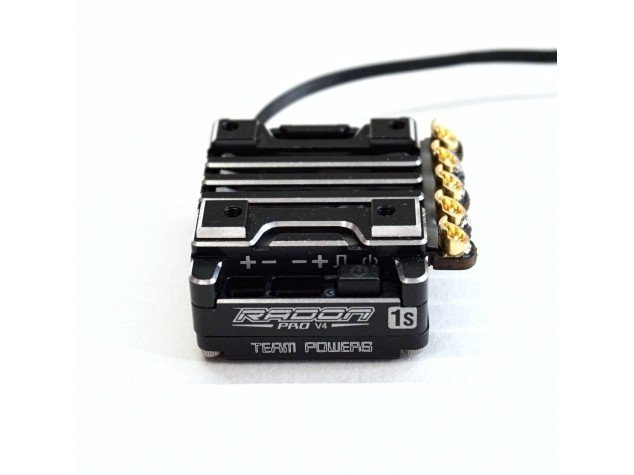

Team Powers Radon professional V4 1S (200A) Speed Control (included USB device) (TP-Radon-ProV4-1S)
Hardware:
* Upgrade version of higher ampere FET to lower the hardware internal opposition with an increase of output energy. Besides, its reduced IR can lower the rate control working temperature by around 6percent
* With more open line area to dissipate more temperature away in term to lower the rate control temperature by additional 6%
* The rate control casing only has 17mm height with 2mm lower that having better reduced gravity
* additional ~10per cent fat lighter
* help Ch3/Ch4 Aux Input sign to regulate various product function values
* brand new pcb layout design with better security and reliablility
Computer Software:
* With Ch3/Ch4 Aux function to regulate among the under pre-defined control product function
(age.g. IP-Limiter, Throttle Rate, RPM Lock, Initial Brake, Drag Brake, Brake Force, I-BK-RSP, Brake Speed,
Increase Timing, Boost Trig LVL, Increase Trig Rate, Turbo Timing, Turbo Delay, Turbo On Rate)
* Optimize the brake function with better linearity
Specifications:
. Settings: Forward/Brake/Reverse
. Input Voltage: 1S lipo
. BEC: 6V/7.4V selection/max ~3A
. Motor Limit: 3.5T or over
. Max present: ~200A per phase
. Size: ~38x30x17mm
. Body weight: ~37g (not consist of wiring and fan)
Features:
. Ultra-smooth, Precise Throttle and Braking Control
. Compatible with Sensored/Sensorless Brushless Motors
. Information review Capability(RPM, minimal voltage and ESC heat)
. HotWire Computer Interface for Advanced Programming and Upgrading
. Easily Programming through system card(not contained in the package)
. Integrated one touch On/Off switch with LED
. Bulit-in minimal voltage cut-off, Overheat protection and sign loss protection
