The Radon Pro V4200A Speed Control included USB device TP-Radon-Pro-V4-c produced by Team Powers, is classified in R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC

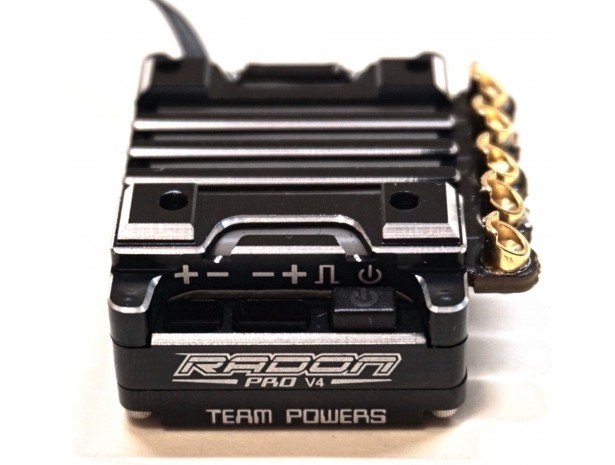

Team Powers Radon professional V4(200A) Speed Control (included USB device) (TP-Radon-Pro-V4-c)
Hardware:
* Upgrade version of higher ampere FET to lower the hardware internal resistance with an increase of output energy. Besides, its reduced IR can lower the rate control working temperature by around 6per cent
* With more available line area to dissipate more heat out in term to lessen the speed control temperature by additional 6percent
* The rate control casing only has 17mm height with 2mm lower that having better lower gravity
* Extra ~6per cent fat lighter
* help Ch3/Ch4 Aux Input signal to regulate various item function values
* brand new pcb layout design with better security and reliablility
Computer Software:
* With Ch3/Ch4 Aux function to manage among the under pre-defined control item function
(age.g. IP-Limiter, Throttle Rate, RPM Lock, Initial Brake, Drag Brake, Brake Force, I-BK-RSP, Brake Rate,
Increase Timing, Increase Trig LVL, Boost Trig Speed, Turbo Timing, Turbo Delay, Turbo On Speed)
* Optimize the braking system function with better linearity
Specs:
. Settings: Forward/Brake/Reverse
. Input Voltage: 2S-3S lipo
. BEC: 6V/7.4V selection/max ~5A
. Motor Limit: 4.0T or higher
. Max present: ~200A per period
. Size: ~38x30x17mm
. Body weight: ~37g (maybe not add wiring and fan)
Features:
. Ultra-smooth, Precise Throttle and Braking Control
. Appropriate for Sensored/Sensorless Brushless Motors
. Information research Capability(RPM, Low voltage and ESC temperature)
. HotWire Computer Interface for Advanced Programming and Upgrading
. Easily Programming through the Program card(maybe not contained in the package)
. Built-in one touch On/Off switch with LED
. Bulit-in minimal voltage cut-off, Overheat protection and sign loss protection
