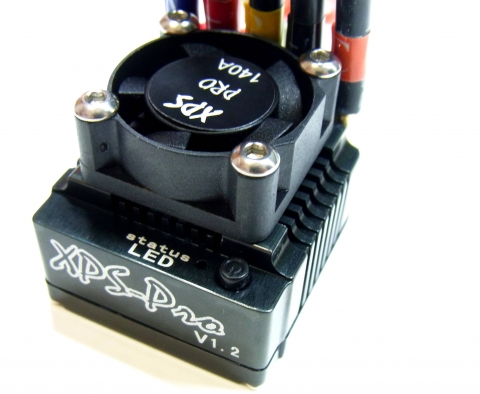

Team Powers XPS Pro Speed Control System V1.2 -140A (with setting card included)  [TP-XPS/Pro-v1_2]

Team Powers XPS Pro Speed Control System V1.2 -140A (with setting card included)
Price:
USD$134.90
Brand:
Team Powers
Model:
TP-XPS/Pro-v1_2
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC category
Write a review
The XPS Pro Speed Control System V1.2140A with setting card included produced by Team Powers, is classified in R/C Models - Motor / ESC / Cooling Fan - ESC - Car ESC

Team Powers XPS Pro Speed Control(140A) + Setting Card

Item No: TP-XPS/Pro-v1_1

Features:

  • Support with kinds of sensored/sensorless brushless motors in RC model 1/10th, 1/12th vehicle & Truck
  • Help Operating Mode: Ahead with brake, Forward/Reverse, Forward/Reverse with Brake
  • Manual/Factory operating profile setting. For factory running profile, it includes 9 degree for modify competition and 4 levels LCTS (linear control timing system) for battle tournaments
  • Utilize the pocket-size system card to program the controller settings
  • Multiple protection functions: minimal voltage cut-off security, Over heat security, Throttle sign loss security
  • Extra smaller size aluminum casing for cooling
  • Additional battery pack production adaptor connecting to the engine cooling fan

Techincal Specs:

  • Model: XPS- Professional /XPS-Sport/ XPS-EL
  • Constant present: 140A /70A /35A
  • Burst present (10sec): 720A /400A/ 160A
  • Battery Input(3.7V LiPo): 2 cells /2 cells/ 2 cells
  • Battery Input(1.2V NiMh/NiCd): 4-6 cells /4-6 cells/ 4-6 cells
  • BEC Output: Linear 6V/2A /Linear 6V/2A/ Linear 6V/2A
  • Body weight (not included wiring & fan): 42g /41g /40g
  • Dimension(L x W x H) mm*(range from the fan installation towards ESC): 32 x 30 x 28 /32 x 30 x 28/ 32 x 30 x 28
  • engine limit with 2cell x 3.7V Lipo*Assume engine at 0 level timing : 4 Turn or over /6.5 Change or over/ 9.5 Turn or higher

Setting Card Program Items includes:


  • Energy Profile
  • Over Heat Protection
  • Running Profile
  • Initial Punch Level
  • Low Voltage Protection
  • Advance Punch Degree
  • Max Reverse Force
  • PWM Frequency
  • Max Brake Force Sensor Timing(Phase1)
  • Drag Brake Force

Manual Eng Ver:
http://www.team-powers.com/manual/XPS_Sport_EL_UG_07132010_eng.pdf

Handbook Chinese Ver:
http://www.team-powers.com/manual/XPS_Sport_EL_UG_09192010_ch.pdf

Establishing Card Chinese Ver:
http://www.team-powers.com/manual/XPS_Sport_EL-SettingCard_ch.pdf
