TRAXXAS 1/10 MAXX/Wide MAXX Aluminium Front/Rear Lower Arms by GPM TXMW055F/R  [TXMW055F/R]

Aluminium lower arms for TRAXXAS MAXX

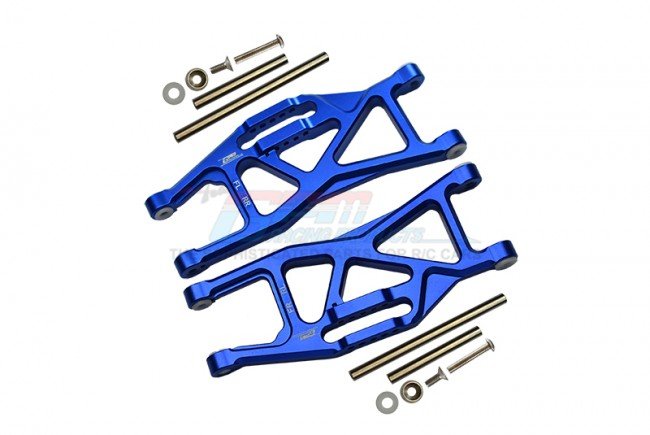

This 14pcs aluminium lower arm set is made for the 1/10 TRAXXAS MAXX and Wide MAXX monster trucks and is intended as an RC-scale replacement for the front and rear lower arms. The kit uses 6061-T6 aluminium for the main arm pieces and includes the small stainless pins, screws, washers and Delrin shims required to mount the arms to C-hubs and suspension mounts.

Design notes relevant to installation and tuning: the arms accept Delrin collars to reduce slop at pivot points and the kit provides white Delrin 4mm shims to reduce the wider rear gap when fitting the rear arms, the pin-and-small-screw fixing method secures arms without relying on long thread engagement, and multiple damper-position holes allow incremental changes to damper angle for ride-height and rebound tuning.

Hardware included in the supplied kit covers the basic mounting needs and is detailed in the original parts list, use the supplied stainless pins and 3x18 and 3x8 screws to secure the arms, and check clearance with your motor, ESC and servo before final assembly.

Use this aluminium lower arm set when replacing or upgrading worn plastic arms on TRAXXAS MAXX platforms to regain solid pivot fit and preserve damper positioning options.
