TRAXXAS XRT 8S 40CR Carbon Steel M1.5 Spur Gear 33T+Motor Gear 19T - GPM TXM1933TS [TXM1933TS]

Price:

USD$35.90

Brand:

GPM

Model:

TXM1933TS

GTIN:

4894538381573

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
Spares / Hop-ups - Traxxas - X-MAXX 6S category

Write a review

alt="TRAXXAS XRT 8S 40CR Carbon Steel M1.5 Spur Gear 33T+Motor Gear 19T - GPM TXM1933TS" title="TRAXXAS XRT 8S 40CR Carbon Steel M1.5 Spur Gear 33T+Motor Gear 19T - GPM TXM1933TS"

Description

The TRAXXAS XRT 8S 40CR Carbon Steel M1.5 Spur Gear 33T+Motor Gear 19T produced by GPM, is classified in Spares / Hop-ups - Traxxas - X-MAXX 6S

This item is suitable for TRAXXAS XMAXX, TRAXXAS X MAXX 8S Monster Truck and 1/6 4WD XRT 8S-78086-4

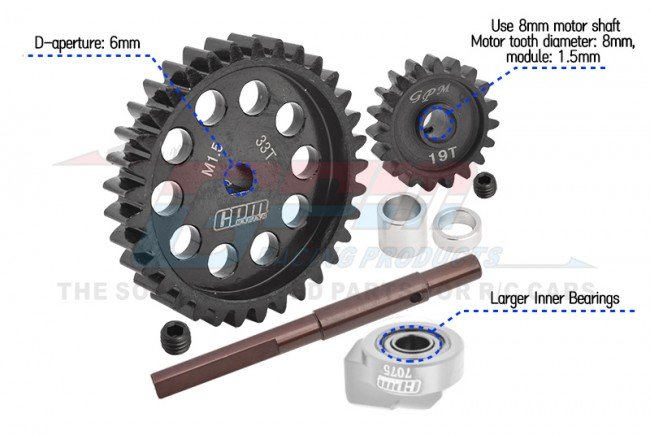

Packing Includes:
Motor gear 19T-1pc
Screw shaft 5x5-1pc
Spur gear 33T M1.5-1pc
Cush drive input shaft-1pc
Bearing 6x13x5-1pc
shim 6x8x3.5-1pc
shim 6x8x7.5-1pc
Set screws 5x5-1pc
Aluminum 7075 mount-1pc

The upgraded 40Cr Carbon steel Spur Gear 33T M1.5 and big gear shaft, bearing and aluminum 7075 fixed mount draw out three-point help, that is better than the initial two-point help in security and transmission effect.
Motor tooth diameter: 8mm, module: 1.5mm, wide range of teeth: 19T.
Spur Gear 33T diameter: 6mm, D-shaped engine gear hole, module: 1.5mm, number of teeth: 33T,tooth area width: 14mm,Outer diameter: 52.4mm.

Suitable Model:
TRAXXAS-1/5 4WD X-MAXX 6S
TRAXXAS-1/5 ELECTRICAL 4WD X-MAXX 8S MONSTER TRUCK
TRAXXAS-1/6 4WD XRT 8S-78086-4
