TRAXXAS XRT 8S 40CR Carbon Steel M1.5 Spur Gear 35T + Motor Gear 20T - GPM TXM2035TS [TXM2035TS]

Price:

USD$35.90

Brand:

GPM

Model:

TXM2035TS

GTIN:

4894538381658

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
Spares / Hop-ups - Traxxas - X-MAXX 6S category

Write a review

alt="TRAXXAS XRT 8S 40CR Carbon Steel M1.5 Spur Gear 35T + Motor Gear 20T - GPM TXM2035TS" title="TRAXXAS XRT 8S 40CR Carbon Steel M1.5 Spur Gear 35T + Motor Gear 20T - GPM TXM2035TS"

Description

The TRAXXAS XRT 8S 40CR Carbon Steel M1.5 Spur Gear 35T + Motor Gear 20T produced by GPM, is classified in Spares / Hop-ups - Traxxas - X-MAXX 6S

This item is suitable for TRAXXAS XMAXX, TRAXXAS X MAXX 8S Monster Truck and 1/6 4WD XRT 8S-78086-4

Packing Includes:
Motor gear 20T-1pc
5x5 Screw shaft-1pc
Spur gear 35T M1.5-1pc
Cush drive input shaft-1pc
Bearing 6x13x5-1pc
shim 6x8x3.5-1pc
shim 6x8x7.5-1pc
Set screws 5x5-1pc
Aluminum 7075 mount-1pc

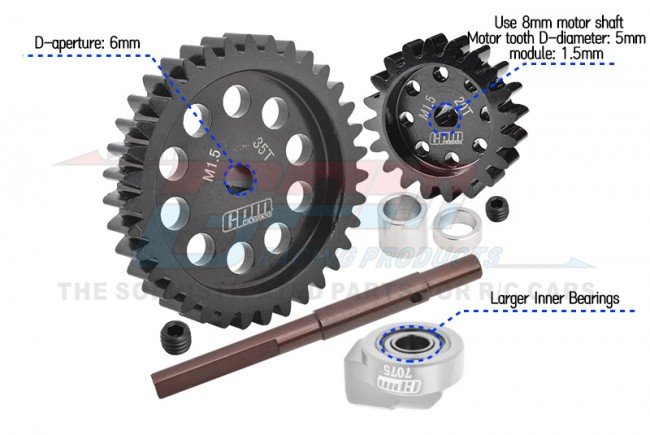

The upgraded 40Cr Carbon steel Spur Gear 35T M1.5 and large gear shaft, bearing and aluminum 7075 fixed mount draw out three-point support, which is better than the original two-point help in stability and transmission effect.
Motor enamel diameter: 5mm, D-shaped engine gear hole, module: 1.5mm, quantity of teeth: 20T,tooth area width: 9mm,Outer diameter: 33mm.
Spur Gear 35T diameter: 6mm, D-shaped motor gear gap, module: 1.5mm, wide range of teeth: 35T,tooth area width: 14mm,Outer diameter: 55.4mm.

Suitable Model:
TRAXXAS-1/5 4WD X-MAXX 6S
TRAXXAS-1/5 ELECTRICAL 4WD X-MAXX 8S MONSTER TRUCK
TRAXXAS-1/6 4WD XRT 8S-78086
