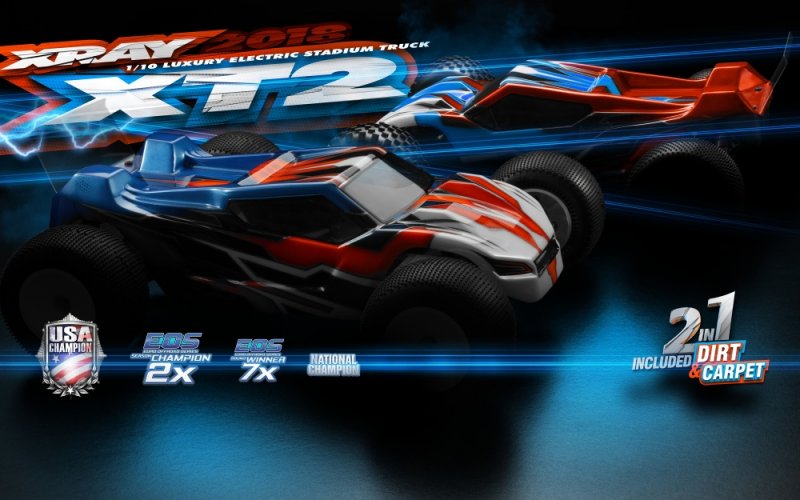

XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck  [XR-320201]

XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck
Price:
USD$438.10
Brand:
XRAY
Model:
XR-320201
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Truggy - Electric Powered category
Write a review
alt="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"
alt="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck" title="XRAY 320201 XT2 - 2018 Specs - 2WD 1/10 Electric Stadium Truck"

Dimensions

  • Class: 1/10 electric 2WD off road stadium truck
  • Width: Adjustable 313-319 mm
  • Length: 319 mm (420 mm with wing)
  • Wheelbase: Adjustable 289-294 mm
  • Weight: 920 g
  • Ready-to-run weight: 1900 g


Chassis

  • Chassis: CNC-machined Swiss 7075 T6 aluminum 2.0 mm
  • Front top deck: Hard composite


Suspension

  • Suspension: Adjustable suspension system via built-in Suspension System I.S.S.
  • Rear suspension: Lower supply with adjustable upper camber link
  • Front suspension system: Lower supply with adjustable top camber website link and with adjustable caster 0°, 2.5° and 5°
  • Rear upright: Composite 0° toe-in with twin supply mounting and 7 roll center roles
  • Shocks: Membrane free surprise absorbers with Delrin pistons
  • Shock towers: Composite front and back shock towers include multiple shock positions (Carpet Edition) & graphite rear surprise tower (Dirt Edition)
  • Drivetrain
  • Type: 2WD
  • Primary: Pinion / spur
  • Drive shafts: HUDY Spring metal™ CVD drive shafts
  • Differential: Sealed gear differential, 6 gear, silicone-filled (Carpet Edition), hard coated ball differential (Dirt Edition)
  • Slipper clutch: Adjustable 3-Pad
  • Bearings: Rubber-sealed high-speed bearings


Gearing

  • Primary ratio: 1:2.65
  • Gear Box gear: 36T (Carpet Edition) & 25T (Dirt Edition)
  • Differential pulley: 53T
  • Spur gear: 81T (75T, 78T, 84T & 87T option)
  • Motor pinion: Not included


Geometry

  • Camber: Adjustable front + rear
  • Front Caster: 26° fixed + caster in caster block = 26°, 28.5°, 31° total caster range
  • Toe-in: Adjustable front + rear
  • Downstops: Adjustable front + back
  • Front kick-up: Adjustable 26°~31°
  • Rear anti-squat: Adjustable 0°~4°
  • Anti-roll bars: Front – 1.4mm (1.2 mm, 1.6 mm & 1.8 mm option just), rear - 1.0 mm to 2.0 mm (choice only)
  • Ackermann: Adjustable
  • Bump steer: Adjustable
  • Steering: Centrally-positioned double steering system


Body, Tires, Wheels & Misc

  • Body: XRAY XT2 body
  • Tires: Not included
  • Wheels: Not included - XRAY Aerodisk 12mm Wheel hex hub (option just)


Adjustment Possibilities

  • Standard adjustment: Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer
  • directions: Full-color manual with 3D pictures
  • Set-up guide: Not included. HUDY 2-color off-road set-up book is downloaded inside Download section and it shows 1/8 off road models in photographs included within it. However, the methodology and set-up concept are the same for several modern 1/10 off-road automobiles.
  • Packaging: Carton field with vinyl bags with parts
  • Additionally included: HUDY Graphite Grease, Silicone Oils, Authentication Certificate, Parts list & Exploded view, Decals


Products perhaps not included

  • Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal device for all peanuts and turnbuckles alongside tools
Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
