XRAY 350013 XB8 2018 Specs  [XR-350013]

XRAY 350013 XB8 2018 Specs
Price:
USD$736.10
Brand:
XRAY
Model:
XR-350013
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Buggy - Nitro Powered category
Write a review
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"
alt="XRAY 350013 XB8 2018 Specs" title="XRAY 350013 XB8 2018 Specs"

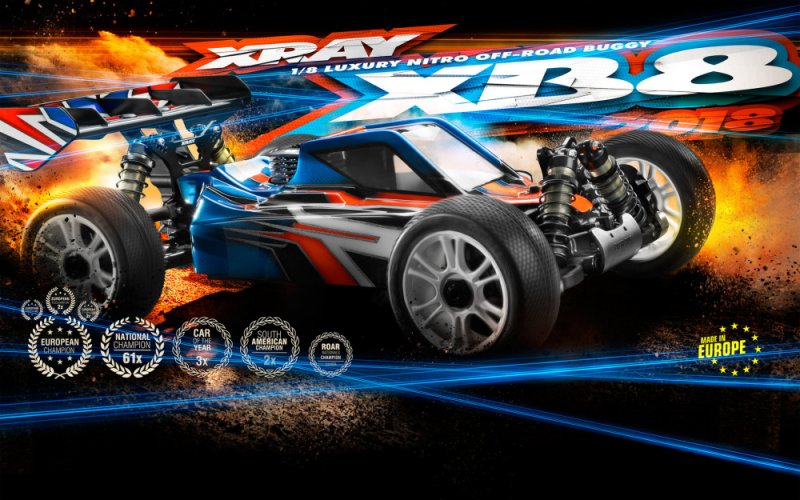

The XB8 2018 Specs produced by XRAY in 1/8 scale XB2 / XB4 / XB8 / XB8E series AWD drivetrain assembly kit, is classified in R/C Models - Off-Road - Buggy - Nitro Powered

Dimension

  • Length: 500 mm
  • Chassis length: 399.5 mm
  • Wheelbase: 322~328 mm
  • Width: 310 mm
  • Weight: 1868 g
  • Approximate operating weight: 3205 g


Chassis

  • Chassis: 3 mm CNC-machined Swiss 7075 T6 hardcoated aluminum
  • Radio tray: Composite 1-piece
  • Central diff top deck: Composite
  • Braces: Composite braces (front side / back)


Suspension

  • Suspension: Pivot ball fully adjustable suspension
  • Rear suspension: Lower H-arm with adjustable top camber link
  • Front suspension: Lower H-arm with adjustable top camber link A-arm
  • Rear upright: Composite with double supply mounting and 2 lower roll center roles and top aluminum dish with 3 upper roll center positions
  • Shocks: Big-bore shocks with different shock pistons featuring Delrin pistons
  • Shock towers: Front & rear 4.0mm alu


Drivetrain

  • Type: Full-time shaft-drive 4WD with center differential
  • Primary: metal spur gear / clutchbell
  • Drive shafts: HUDY Spring Steel™ universal drive shafts in-front & CVD in rear
  • Central shafts: HUDY Spring Steel™ CVD drive shafts
  • Differentials: Sealed, 6 gear, silicone-filled
  • Clutch: Aluminum 3-shoe
  • Bearings: Rubber-sealed


Gearing

  • Pinion: 14T front / rear
  • Crown gear: 46T front / rear
  • Clutchbell: 13T
  • Spur gear: 46T


Body, Tires, Wheels & Misc.

  • Body: XRAY XB8 High Speed '16 body
  • Tires: Not included
  • Wheels: perhaps not included, standard 17 mm hub
  • Fuel tank: 123cc ability with capacity-adjustment portions, with hypertonic tank lid and internal stone-type floating filter


Adjustment possibilities

  • Standard modification: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, reduced & top roll facilities, kingpin, Ackermann, bump steer, Multi-Flex, fat balance
  • Items maybe not included
  • Engine, Exhaust system, Electronics (broadcast, Receiver, Servos, Batteries), Wheels, Tires, Tools, Wheel tool, Receiver battery, Fuel, change, begin field, Glow heater, Paint, Charger, Universal device for several nuts and turnbuckles, Set-up guide.
Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
