XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car  [XR-350154]

XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car
Price:
USD$649.00
Brand:
XRAY
Model:
XR-350154
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Buggy - Electric Powered category
Write a review
alt="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car"
alt="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car" title="XRAY 350154 XB8E 2017 Specs - 1/8 Luxury Electric Off-Road Car"

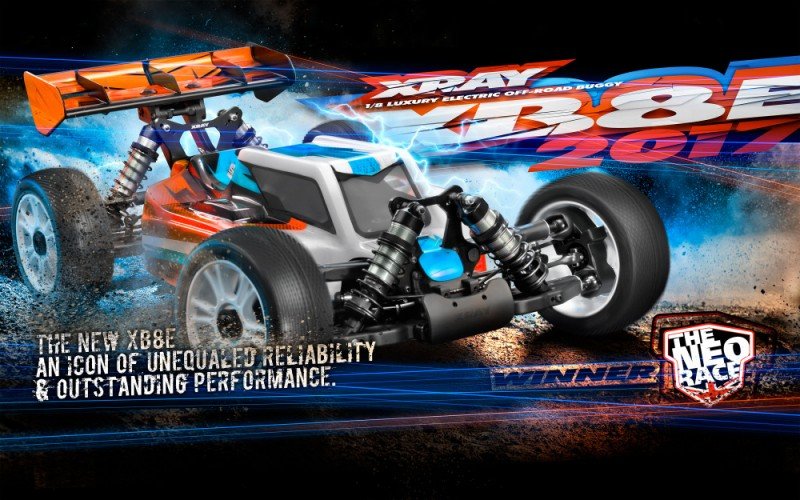

The XB8E 2017 Specs Luxury Electric Off-Road Car produced by XRAY in 1/8 scale XB2 / XB4 / XB8 / XB8E series AWD drivetrain assembly kit, is classified in R/C Models - Off-Road - Buggy - Electric Powered

Dimensions

  • Length: 500 mm
  • Chassis length: 399.5 mm
  • Wheelbase: 322~328 mm
  • Width: 310 mm
  • Weight: 2014 g
  • Approximate operating weight: 3450 g


Chassis

  • Chassis: 3 mm CNC-machined Swiss 7075 T6 hardcoated aluminum
  • Receiver tray: CNC-machined 2.2 mm graphite
  • Radio situation: Composite
  • Front upper deck: CNC-machined 2.5 mm graphite
  • Central diff top deck: CNC-machined 2.2 mm graphite
  • Braces: Composite braces (front side / rear)


Suspension

  • Suspension: Pivot ball completely adjustable suspension
  • Rear suspension system: Lower H-arm with adjustable top camber link
  • Front suspension: Lower H-arm with adjustable top camber link A-arm
  • Rear upright: Composite with double arm mounting and 2 reduced roll center roles and top aluminum plate with 3 top roll center roles
  • Shocks: Big-bore shocks with various shock pistons featuring Delrin™ pistons
  • Shock towers: Front & rear 4.0 mm alu


Drivetrain

  • Type: Full-time shaft-drive 4WD w/ center differential
  • Primary: Steel spur gear / pinion
  • Drive shafts: HUDY Spring metal™ universal drive shafts
  • Central shafts: HUDY Spring Steel™ CVD drive shafts
  • Differentials: Sealed, 6 gear, silicone-filled
  • Bearings: Rubber-sealed


Gearing

  • Pinion: 14T front side / rear
  • Crown gear: 46T front / rear
  • Pinion gear: maybe not included (optional 12T~17T)
  • Spur gear: 46T
  • Primary ratio: 3.33
  • Final gear ratio: 11.79


Body, tires, wheels & misc.

  • Body: XRAY XB8'16 body
  • Tires: perhaps not included
  • Wheels: maybe not included, standard 17 mm hub


Modification possibilities:

  • Standard modification: Camber, caster, toe-in, wheelbase, kick-up, anti-squat, lower & top roll facilities, kingpin, Ackermann, bump steer, Multi-Flex, weight balance


Itemms perhaps not included

  •   Electric Motor, Electronics (broadcast, Receiver, Steering Servo, Battery Pack, Speed Controller), Pinion gear, Wheels, Tires, Tools, Wheel device, Paint, Battery Charger, Bearing Oil, Threadlock, CA Glue, Universal device for several nuts and turnbuckles, Set-up Book
Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
