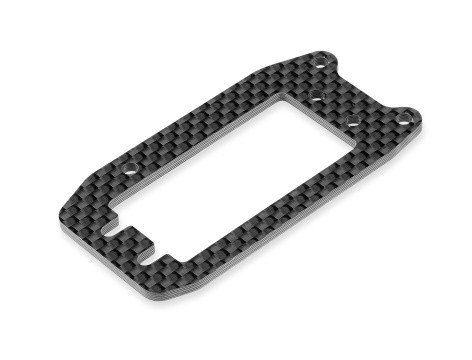

XRAY 356106 - Carbon Servo Mount - Narrow & Lower Battery Layout  [XR-356106]

Carbon servo mount for narrow battery layouts

The XRAY 356106 carbon servo mount is an RC-scale replacement part engineered for chassis that use a narrow and lower battery electronics layout. Its reinforced geometry is intended to reduce flex around the servo mounting area and keep servo alignment stable under repeated load during track use.

The mount is developed to integrate with the updated receiver box and ESC plate design, ensuring correct positioning relative to those components without requiring chassis modification. CNC machining and high-grade carbon material provide consistent dimensions for repeatable fitment and reduced weight compared with equivalent alloy parts.

Installation is straightforward but should follow basic checks: confirm the mount mates with your receiver box and ESC plate before final assembly, align the servo horn to the steering linkage to avoid binding, and tighten mounting screws incrementally to avoid deforming the carbon plate. The part functions as a tuning item—stiffer mounting can improve steering consistency while preserving the intended movement of the steering assembly.

Use this mount when your setup uses a narrow, low battery placement and you need a stiff, lightweight servo mounting solution that matches the revised electronics layout.
