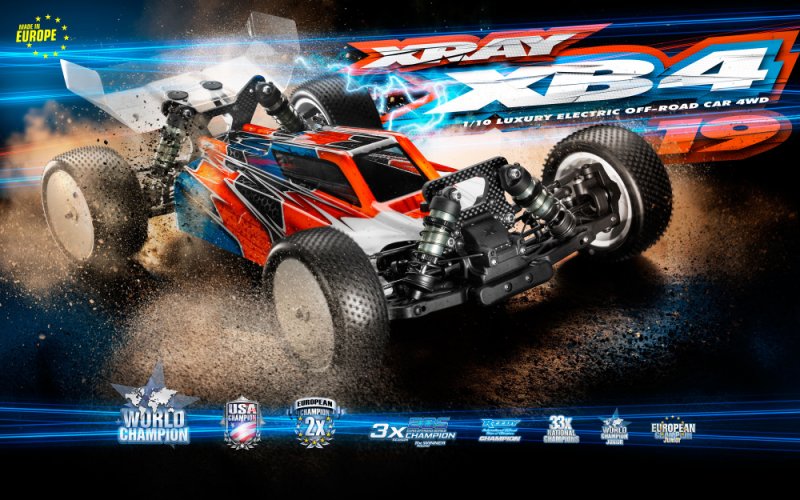

The XB4'19 4WD Electric Off-road Car produced by XRAY in 1/10 scale XB2 / XB4 / XB8 / XB8E series AWD drivetrain assembly kit, is classified in R/C Models - Off-Road - Buggy - Electric Powered

XRAY XB4’19



2018 All-new:

  • Recent EOS Champion, European Champion, USA Champion and World Champion platform
  • Redesigned framework accommodates brand new lower engine mount to decrease the CG
  • Lower motor mounts decrease the fat place of motor and main slipper clutch/diff, increasing cornering rate and stability
  • Redesigned lower composite core bulkhead fits the new reduced aluminum engine mount
  • Redesigned part guard permits engine become placed lower
  • Improved surprise absorber lower shims give more precise shock shaft movement
  • Improved construction and manufacturing details on both front side & rear differential crown gears results in quieter procedure and increased dependability



General:

  • Designed for greatest performance anyway levels of racing
  • Engineered with awareness of smallest details
  • Manufactured with popular creative craftsmanship from premium European materials
  • EFRA, ROAR, FEMCA spec compliant for stock and modified racing
  • Super an easy task to build, arranged, keep, and drive
  • Developed, designed and styled by Dipl. Eng. Juraj Hudy, manufactured exclusively by XRAY in Europe in the world's many sophisticated RC manufacturing facility
  • Revolutionary off road platform with brand new benchmark for premium quality, reliability and performance
  • Premium XRAY service & help



Chassis:

  • Smarter framework fat balancing options enable the engine mount and center diff assembly to go frontwards or backwards
  • Unique XRAY Multi-FlexTM technology for effortless chassis flex adjustment
  • Swiss 7075 T6 hardcoated 2.0mm aluminum chassis with countersunk holes for flush, smooth underside
  • Tough composite side guards perfectly fit the chassis to seal against dust and protect from part impacts
  • Compact electronic devices plate allows for mounting the rate controller for quick & easy reduction and assembly
  • Graphite front, main & back top decks independent from chassis flex adjustment and work just within the front, main, and rear diff assemblies
  • Composite & graphite framework braces for fine-tuning of this framework flex
  • Independent servo mount enables the steering servo become installed to the framework without touching it, ensuring the elimination of unwanted framework tweak and enhancement of overall traction
  • Two different battery straps short -or- long included. The long battery pack strap allows battery pack to be set up either frontwards or rearwards
  • Battery foam right back spacer ensures the battery pack wont fall out
  • Thick 3.5mm graphite front surprise tower & 3.0mm rear surprise tower with multiple shock mounting and roll center positions
  • Extra robust front side & rear bulkheads enable usage of the differentials only using 4 screws



Differentials & Drivetrain:

  • Front & backside gear differentials with adjustable oil viscosity, featuring 35T top metal gears and 14T metal pinion gears
  • Molded front & back gear differentials for super-smooth, maintenance-free operation, features long-lifespan HUDY Spring Steel™ outdrives
  • Innovative aluminum engine mount enables frontwards or rearwards engine place for fat stability adjustment
  • Motor eccentric mounting plate inserts into a engine holder/drivetrain help, permitting fast & simple engine rotation for gear mesh and protected clamping with one screw
  • Robust central slip-adjustable clutch with 81T main spur gear molded from exclusive key blend of composite material
  • Internal 1:2.5 drive ratio
  • 3-pad slipper clutch with ultra-efficient SLS material to get more efficient & exact slide modification, and HUDY Spring Steel™ hardened outdrives for extra lifespan and reliability
  • Constant velocity drives (CVD) are produced from special HUDY Spring metal for paid down fat and increased durability. The shafts are hand ground for maximum precision
  • Safety collars for many CVD drive shafts to keep mounting pins firmly in place
  • Ultra-lightweight 12mm wheel hex drive hubs CNC-machined from Swiss 7075 T6 not to mention black-coated have ultra-true hex clamping design which guarantees solid mounting of wheel
  • Optional 14mm offset wheel hex drive hubs readily available for super-fine track-width modification: -0.75mm, 0mm, +0.75mm and 12mm optional wheel hex drive hubs: -0.75mm, +0.75mm, +1.5mm, +2.25mm, +3.00mm, +3.75mm, +4.5mm
  • Full set of 22 high-speed, blue-sealed ball-bearings utilized through the drivetrain to ensure maximum efficiency, degreased and oiled with Aero Shell® Fluid 12 for maximum smoothness and endurance



Suspension:

  • Swiss 7075 T6 aluminum suspension holders front and rear
  • Integrated Suspension Settings (I.S.S.) for fast & simple suspension geometry establishing making use of eccentric bushings inserted into aluminum suspension system holders
  • Specially-designed suspension system elements constructed from carefully formulated customized composite mixtures to make sure proper flex and durability
  • Race-perfected suspension system geometry for superior performance and flexibility in all racing conditions.
  • Lightweight 1-piece caster blocks with preset 9° caster with simple adjustable roll center position featuring larger spaces for quick and easy disassembly of CVDs; optional 6° & 12° caster obstructs available
  • Front chassis feature pre-angled caster of 8° and with the adjustable I.S.S. settings an assortment 16~20° of total caster are achieved
  • Tiny yet robust steering blocks molded from a special composite mixture for maximum strength featuring adjustable reduced roll center.
  • Very compact 0° toe-in rear uprights function 3 different top roll center jobs, staggered inner/outer bearing sizes for improved load support and unsprung weight, and wheelbase adjustability via included shims
  • Oversized outer bearings in uprights to for increased powerful loads
  • HUDY Spring SteelTM product for turnbuckles (featuring a tougher core) can be used for front & rear upright linkages, steering system, and servo saver
  • Anti-roll bars made of special springtime steel material to support the vehicle at both front side and backside are mounted toward diff cases & can be easily modified via linkages; laser-engraved markings for effortless recognition, available in different sizes for fine-tuning



Steering:

  • Simple, effective dual-arm steering system with built-in adjustable servo saver guarantees perfect steering and easy Ackermann and bump steer adjustment



Shocks:

  • Consistent, dependable membrane-free big-bore shocks with bleed-screw shock cap design function up-stop surprise rod travel modification (via O-rings) and downstop modification (via shims under pistons)
  • Swiss 7075 T6 aluminum shock systems, reduced nut & bleeder shock caps are hard coated
  • Super-precise molded Delrin™ pistons can be obtained with 2-hole design & opening diameters 1.6mm and 1.7mm for exact surprise adjustment; for customized modification, a couple of blank pistons (no holes) are included
  • Shock rods are machined from a particular metal material, accuracy hand-ground for optimum smooth procedure and also hardened for increased lifetime
  • Shock springs are faster allowing more fine trip height modification; manually measured, chosen and matched into pairs to make sure equal size and damping faculties; laser engraved for effortless recognition. Two forms of springtime sets are contained in the kit.
  • Full distinct linear -or- progressive surprise springs available
  • Premium silicone oils laboratory tested and calibrated to make sure highest possible consistency and quality



Bumper, Body, Wheels:

  • Strong composite back wing holder
  • Front reduced bumper protrudes from base of this framework to absorb all impacts from contact involving the chassis plus the track surface
  • Beefy 6mm dense human anatomy posts from unique composite material for maximum strength
  • High-downforce XB4 human anatomy is superior, low-profile, and aerodynamic to perfectly fit the XB4 design, with front screen and top roof movement networks for appropriate venting, and side downforce areas and top main rib for higher stability
  • Specially created 12mm hex hub tires for high-competition race; featuring reinforcement ribs to remove deformation and molded from extremely versatile material to retain form despite impacts





Assembly, Set-up & Support:

  • Premium 3D full-color Instructions & supplementary sheets
  • To grasp the set-up possibilities we suggest the famous HUDY Set-up Book which is loaded with over 40 pages of top-quality pictures and easy-to-read RC car set-up explanations
  • Exclusive Virtual On The Web Setup Sheet database with tens of thousands of set-up sheets for competition songs across the world
  • Premium, unmatched XRAY online help



Modification Possibilities:

  • Fully-adjustable front side and rear suspension system geometry: caster, camber, toe, kick-up, anti-squat, ride height, downstops, track-width, roll center, wheelbase, roll facilities, Multi-Flex™
  • Adjustable front side & backside gear differential action (via oil viscosity)
  • Adjustable slipper clutch
  • Adjustable HUDY Sprint Steel™ turnbuckles (steering, front & rear top links)
  • Multiple upper & lower shock mounting areas at front side & rear
  • Adjustable Ackermann and bumpsteer
  • Adjustable front side & back anti-roll bars
  • Chassis pre-drilled holes for fat balance adjustment



Dimensions

Class:

1/10 electric 4WD off-road vehicle

Width:

Adjustable 245-250mm

Length:

350 mm

Wheelbase:

Adjustable 279-281 mm

Body Weight:

850 g

Ready-to-run fat:

1650 g

Chassis

Chassis:

CNC-machined Swiss 7075 T6 aluminum 2.0mm

Front top deck:

Machined 2.0 mm laminated carbon graphite

Suspension

Suspension:

Adjustable suspension via Integrated Suspension System I.S.S.

Rear suspension system:

Lower arm with adjustable top camber website link

Front suspension system:

Lower supply with adjustable top camber website link and with 9° caster obstructs

Rear upright:

Composite 0° toe-in with dual supply mounting and 3 roll center positions

Shocks:

Big bore membrane free shock absorbers with Delrin pistons

Shock towers:

Machined 3.5 & 3.0 mm laminated carbon graphite (front & back) with multiple shock mounting and camber website link roll center roles

Drivetrain

Type:

Full-time shaft-drive 4WD

Primary:

Pinion / spur

Drive shafts:

HUDY Spring Steel™ CVD drive shafts

Central shafts:

HUDY Spring Steel™ Direct Connection Shafts™

Differentials:

Sealed gear differential, 6 gear, silicone-filled

Slipper clutch:

Adjustable 3-Pad

Bearings:

Rubber-sealed high-speed bearings

Gearing

Primary ratio:

1:2.5

Differential pinion:

14T front / back

Differential crown gear:

35T front side / rear

Spur gear:

81T

Motor pinion:

Perhaps not included

Geometry

Camber:

Adjustable front + backside

Front Caster:

9° static +7~11° caster in framework = 16°~20° total caster range

Optional 6° static +7~11° caster in chassis = 13°~17° total caster range

Optional 12° fixed +7~11° caster in chassis = 19°~23° total caster range

Toe-in:

Adjustable front side + back

Downstops:

Adjustable front + back

Front kick-up:

Adjustable 7° ~ 11°

Back anti-squat:

Adjustable 1° ~ 5°

Anti-roll pubs:

1.3mm front side  / 1.2mm back

Ackermann:

Adjustable

Bump steer:

Adjustable

Steering:

Centrally-positioned dual steering system

Body, Tires, Wheels & Misc

Body:

XRAY XB4 human body wide V2

Tires:

Maybe not included

Wheels:

XRAY Aerodisk 12mm Wheel hex hub

Adjustment Possibilities

Standard modification:

Camber, toe-in, caster, track width, wheelbase, kick-up, anti-squat, roll center, Ackermann, bump steer

Directions:

Full-color manual with 3D illustrations (40 pages)

Set-up book:

Not included. HUDY 2-color off-road set-up guide (40 pages) is downloaded within the “Download section“ and it shows 1/8 off-road models in photographs contained within it. But the methodology and set-up theory are exactly the same for all contemporary 1/10 off-road automobiles.

Packing:

Carton box with vinyl bags with parts

In addition included

HUDY Graphite Grease, Silicone natural oils, Authentication Certificate, Parts list & Exploded view, Decals

Items maybe not Included

Radio system (transmitter and receiver), steering servo, engine, pinion gear, LiPo battery pack packages, speed controller, charger, tires, inserts, double-sided tape, CA glue, bearing oil, medium-grade (blue) threadlock, universal tool for all peanuts and turnbuckles as well as other tools

Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
