XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car  [XR-380000]

XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car
Price:
USD$136.10
Brand:
XRAY
Model:
XR-380000
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review
alt="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car" title="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car"
alt="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car" title="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car"
alt="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car" title="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car"
alt="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car" title="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car"
alt="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car" title="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car"
alt="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car" title="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car"
alt="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car" title="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car"
alt="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car" title="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car"
alt="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car" title="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car"
alt="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car" title="XRAY 380000 M18 - 4WD Shaft Drive 1/18 Micro Car"

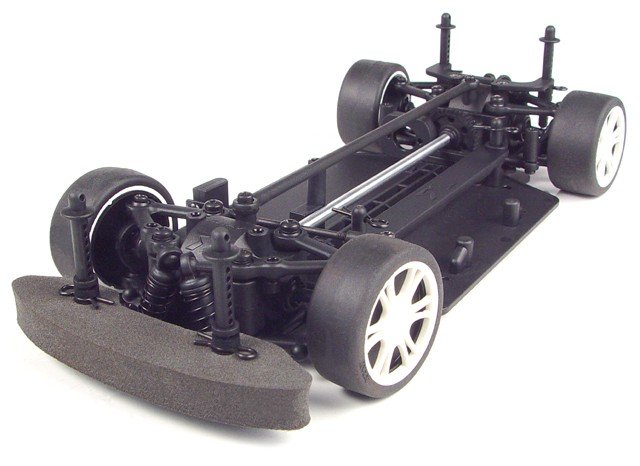

The M18 4WD Shaft Drive Micro Car produced by XRAY in 1/18 scale M18 / M18Pro / M18T / M18MT series AWD drivetrain assembly kit, is classified in R/C Models - On-Road - Touring Cars - Electric Powered

Dimensions

  • Class: 1/18 electric micro car
  • Front Width: adjustable 98~101 mm
  • Rear Width: adjustable 104~107 mm
  • Length: 215 mm
  • Wheelbase: 149 mm
  • Weight: 175 g
  • Ready to run fat: 390 g


Chassis:

  • Chassis: composite CAD-designed chassis
  • Upper deck: composite center linkage
  • Body: 150 mm micro human body (included)


Drivetrain:

  • Type: shaft-drive 4WD
  • Drivetrain: aluminum main driveshaft
  • Primary drive: pinion/spur
  • Drive ratio: 1:2.5
  • Drive shafts: composite front + back
  • Differentials: composite gear differentials, front differential adjustable
  • Bearings: 16 high-speed ball-bearings


Suspension:

  • Front: fully separate
  • back: fully independent
  • Dampening: friction-type coil-over shocks


Geometry:

  • Camber: front/rear: -1° (preset)
  • Caster: 12° (preset)
  • Front Toe: toe-out 0.5° (preset) (adjustable option)
  • back Toe: toe-in 4° (preset) (adjustable option)
  • Downstops: adjustable front + rear
  • Anti-roll bars: optional front
  • Wheelbase: 149 mm


Others:

  • Wheels: XRAY micro tires, adjustable track-width
  • Tires: 40SH front/rear (included)
  • guidelines: full-color manual with 3D images
  • Packing: carton box with 8 plastic bags with parts
  • Additionals included: certificate, parts list, decals, Hudy 3.0mm screwdriver, XRAY catalog
  • Not included: radio system (transmitter and receiver), steering servo, ESC, motor, battery pack (5 mobile), battery pack charger
Remark :
Due to limited stock availability, please notice that some XRAY items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.
