Yokomo YX-40S Shock Shaft/Piston for Pitching Damp  [YX-40S]

Yokomo YX-40S Shock Shaft/Piston for Pitching Damp.
Price:
USD$3.70
Brand:
Yokomo
Model:
YX-40S
GTIN:
3888
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
category
Write a review

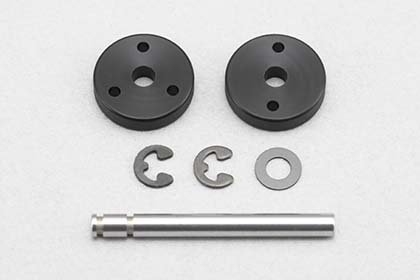

Pitching damper shaft and piston set

This Yokomo YX-40S shaft and piston set is an RC-scale replacement intended for the pitching damper on 1/12 YRX 12 competition cars. The kit supplies pistons with two-hole and three-hole options so you can select flow characteristics that suit your damping setup. The part is specified for use on YR-X12 and YR-X1219 chassis.

Installation is straightforward for anyone familiar with 1/12 dampers: remove the damper from the car, disassemble the shock body, swap the piston and shaft assembly, then reassemble using the same oil and shim setup you prefer. Check seals and O-rings during reassembly and run a few test passes to confirm damping response.

Tuning note: the included 2-hole and 3-hole pistons change the fluid flow rate through the piston, affecting mid- and high-speed damping feel. Use the 2-hole option for comparatively stronger restriction and the 3-hole option for quicker flow, then fine-tune oil weight and piston position to match track conditions.
Remark :
Due to limited stock availability, please notice that some Yokomo items may have to order from the factory and the ready time is around 4-6 weeks. Customer purchases the item is assumed to accept the waiting time which allows us to order directly from the manufacturer if the item is out of our warehouse.

Is this part compatible with YRX 12 variants?

The YX-40S is listed for use with YR-X12 and YR-X1219 chassis, intended for the pitching damper assembly on 1/12 scale YRX 12 competition cars.

What is the practical difference between 2-hole and 3-hole pistons?

Two-hole pistons provide greater flow restriction compared to three-hole pistons, which alters damping feel; choose based on desired pitch control and adjust oil viscosity accordingly.
