Yokomo Z2-304C-2 3G Motor Mount for YZ-2CA/DTM  [Z2-304C-2]

Motor mount for YZ-2CA/DTM

This machined aluminum motor mount is designed to work with raised gearbox layouts on Yokomo YZ-2CA/DTM platforms. It lets you shift the motor up or down by changing which mounting holes you use, so the drive line can be matched when the gearbox is positioned higher using the gearbox spacer set referenced for this series.

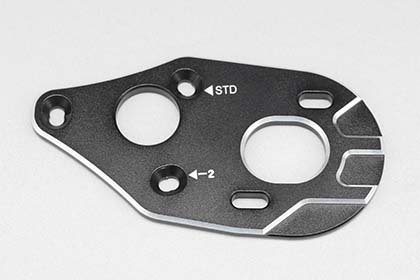

The plate has two motor mounting hole positions to accommodate different motor offsets. Selecting the hole marked "-2" restores the motor to the stock longitudinal position when the gearbox is raised by 2mm, making it easier to retain pinion and spur mesh without additional shimming. The part is intended as a direct replacement motor plate for chassis that accept this mount style.

Installation notes: fit the mount to the chassis and gearbox as usual, confirm gear mesh after changing hole positions, and check motor alignment before finalizing screws.
